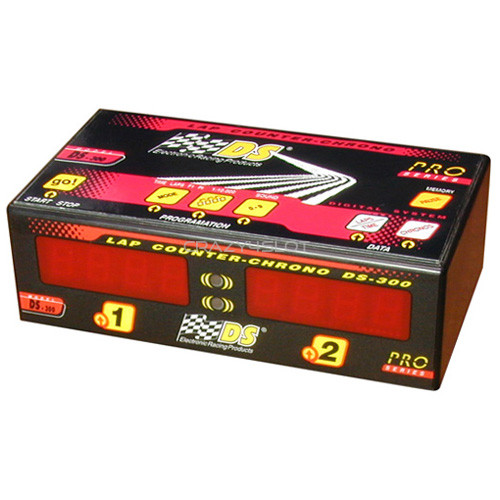

DS 300 PRO Lap Counter for Lanes 1 and 2

The DS 300 PRO is a modular lap counter system for any kind of slot track on the market from 2 to 8 lanes.

Technical Data:
- 13 different programs like Endurance, Rally, GT, Training, F1, Dragsters, etc
- 4 digits per lane for quick and easy reading of timing and laps
- Time programming: maximum 10 hours, minimum 10 seconds
- Lap programming: maximum 9999 laps, minimum 1 lap
- Minimal time programming between laps with a close record to the average time per lap
- Programming the desired car control system: all or indipendent lanes, for any kind of race
- Programming the start with power on the track (penalising one lap the car passing under the bridge before the lights are red)
  or without power on the track (models start at the same time, due to the control of the Stop & Go Box)
- Track power control: cars always stop at the end of the race, due to the power cut from the Stop & Go Box
- Pause option: stop the race and the time recording, so it's possible continue the race from the same point
- RS-232C exit to PC connection (cable not supplied with the lap counter)
- Lap counter supplied with free WINSLOT demo software

Info Displayed:
- Lap timing of every lane when the car is crossing the sensor
- Time spent or time left for finishing the race, during or at the end of the race
- 3 fastest laps time record of each lane during or at the end of the race
- Partial timing of each lap for Rally Slot
- Total time record at the end of the programmed laps for each lane, at the end of the race.
- Timing data displayed in thousands and tenth thousands of a second
- Blinking of the winner lane and of the best lap time record of the race
- Red and green lights for visual control of the race start
- Acoustic signals for programming, start, last lap, end of race, pause and fastest lap

The DS lap counting and race management system includes 3 main parts:
Lap Counter, Trigger (Light Bar or Dead Strip) and Power Supply 10V to 12V.
There are also other accessories like the Stop & Go Box that turns the power off and on that will add enjoyment to your racing.
